Reverse Osmosis 1000 l/h – Industrial demineralization for Brackish Water- EWRO 1000
Original price was: 21.598,00 lei.19.595,00 leiCurrent price is: 19.595,00 lei.
Oferta expira in
Maximum temperature (°C): 5-35
Ambient temperature: 40°C
Flow rate (l/h): 1200
Rejection coefficient min (%): 97
Recovery (%): 75
Working pressure (bar): 8-14
Number of membranes / Type: 3×4040 BW
Voltage (V/Hz): 3x 230 / 400/50
Consumption (Kw): 2.2
Inlet water pressure (bar): 2-6
Humidity (%): 95% non-condensing
Height (mm): 1650
Width (mm): 660
Depth (mm): 700
Weight (kg): 180
Brand:Expert Water
Descriere
SYSTEM DESCRIPTION:
It supplies demineralized water produced on the principle of reverse osmosis
It reduces the concentration of mineral salts in the water.
Only water without concentration of Free Chlorine, Hardness, Iron, Manganese, Bacteria will be used

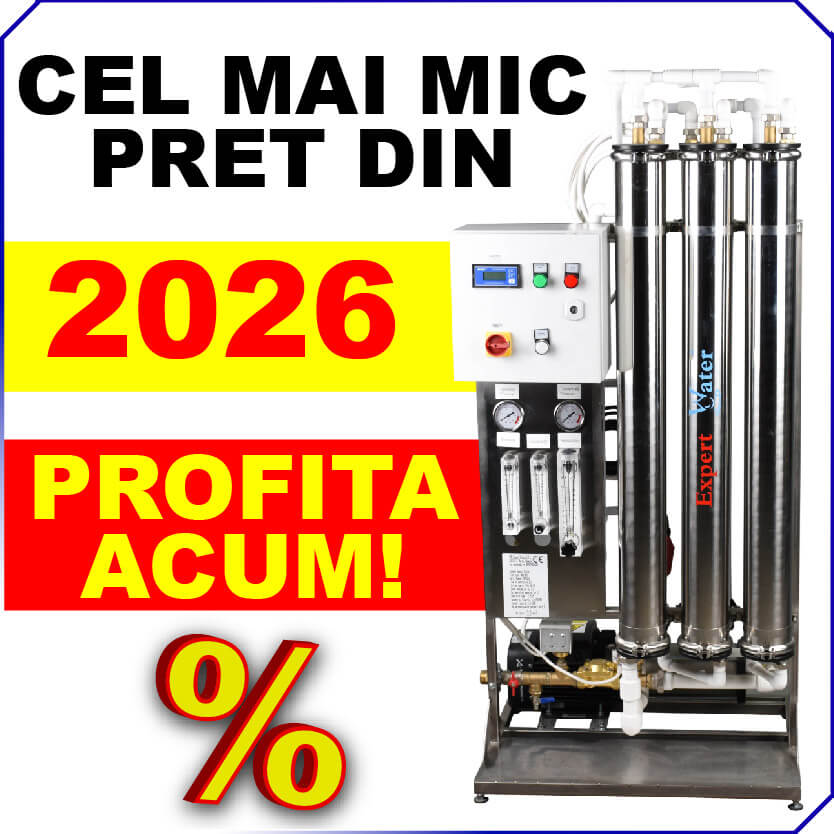

Reverse Osmosis System Design EWRO Unit
Self-standing unit for desalination of softened drinking water – automatic operation with on-off control by electric float in the permeate storage vessel
Base frame with stainless steel front panel, free standing on the floor with adjustable feet
On the base frame and panel there are measuring and control instruments (solenoid inlet valves, minimum pressure switch for feed water, pressure indicator resistant to pressure vibrations, flow meter with adjustment for recirculation and concentrate plus flow meter for displaying the flow of permeate produced instantly
High pressure pump, rotary type, with vanes.
High-performance Osmotic Membrane individual module – Stainless steel casing
The system is equipped with a connection cable (3 m) – 220 V. Complete unit pre-assembled and ready for installation.
RO 524 Microprocessor control system for monitoring and controlling the Reverse Osmosis unit for water demineralization
Display with liquid crystals – online conductivity display, automatic stop when the tank is full.
TECHNICAL DATA
Reverse Osmosis Unit for DEMINERALIZATION Softened Brackish Water – EWRO
Rejection of salts: 96-99%
Recovery: 50 -75 %
Operating pressure: max 15 bar
Electrical supply: 230 V / 400 V / 50 Hz Power Consumed: 1.55 kW
Input – output connections: ½ – ½
Supply water pressure: min 2 – max 6 bar
Feed water temperature: 5 – 35 °C Ph: 3-11
Maximum ambient temperature: 40 °C
Dimensions (L x W x H): 25 X 55 X 110 cm
The unit is designed for a water temperature of 15 °C and free permeate output.
BASIC EQUIPMENT:
>> RECIRCULATION function – ECONOMY ON WATER THROWN TO THE CANAL!
>>Frame, Membrane Housings and Frontal Panel COMPLETELY IN STAINLESS STEEL
>>Completely AUTOMATIC operation
>>LX PUMP – multistage pump
>>> ONLINE PERMEATE CONDUCTIVITY MONITOR
>> 2 Pressure gauges
(Operation and Concentrate)
2 FLOW METERS WITH FLOW ADJUSTMENT (Concentrate and Recirculation)
>> 1 FLOW METER (Permeate)
OPTIONAL – OSMOSIS CONTROLLER
– Conductivity alarm
– Measurement and display of input conductivity
– Working hours log
Informații suplimentare
| Greutate | 130 kg |
|---|---|
| Dimensiuni | 57 × 105 × 175 cm |
